Future-Proof Home Wiring: A Stage-by-Stage Checklist for Indian Homes

A family moves into a freshly finished 3 BHK. Within two years they want a smart switch in the bedroom, a camera on the balcony and the TV on the opposite wall. Each wish meets the same obstacle: no neutral in the switchboard, no conduit to the balcony, a TV point on the wrong side of the room. Every fix begins with chasing plaster and ends with repainting.

Future-proof home wiring means taking the decisions that are easy while walls are open and disruptive once they are finished: spare capacity at the DB, a neutral at every switchboard, data cable and empty conduits to where technology tends to go, and flexible power where furniture and devices will change.

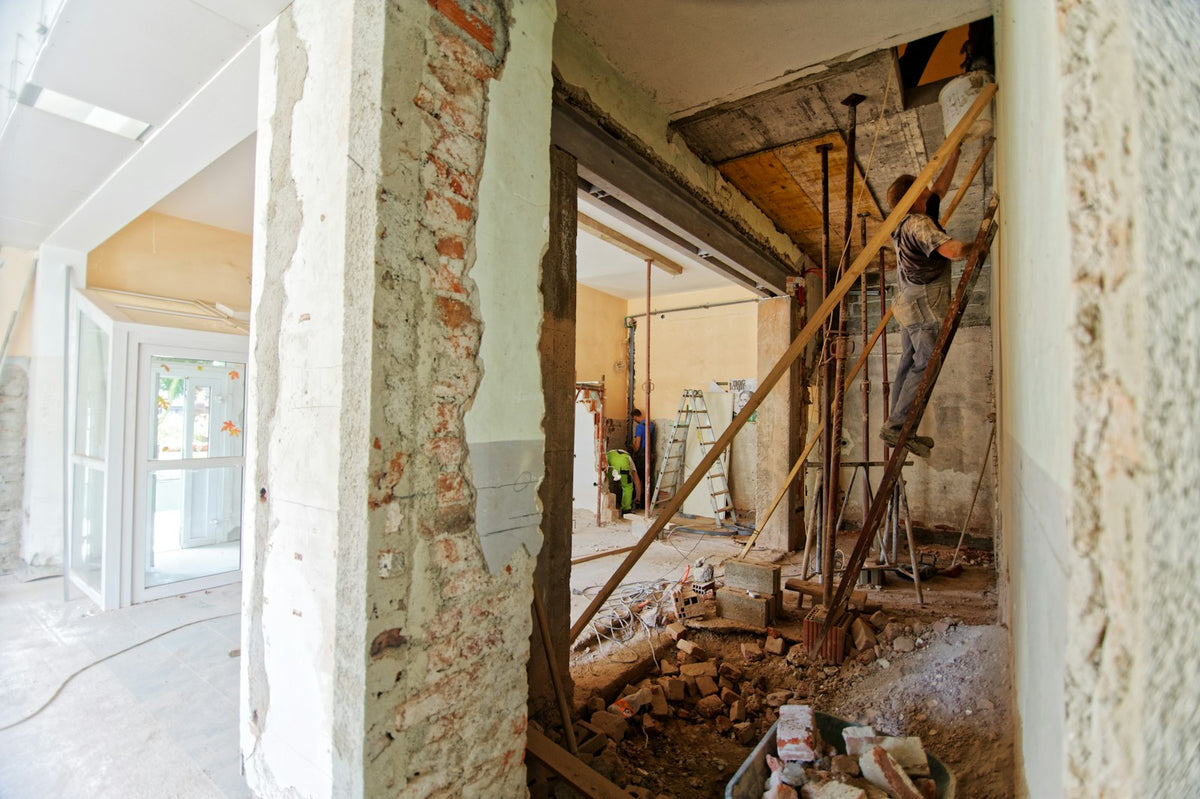

This guide is for new builds and major renovations. It covers the principles, the DB and circuits, switchboards, data and conduits, a room-by-room starting table, what to lock at each construction stage, and the tests and documents to insist on at handover.

What makes home wiring future-proof?

Wiring is future-proof when it can take on new devices, new layouts and new loads without anyone breaking a finished wall. In practice that comes down to three habits.

Plan from the furniture layout

Draw the electrical layout on a furnished plan, never on an empty room. Mark the bed and both bedsides, the sofa and TV wall, the desk, the dining table and every kitchen appliance, then place points where hands and devices will actually be. A socket drawn in the middle of a blank wall tends to end up behind a wardrobe.

Leave room to grow

Allow a circuit or two beyond today's appliance list, use conduits larger than today's cables need, leave a draw wire in every run, and avoid tight bends, which make pulling a new cable through difficult. An empty conduit or DB way costs little now and can save a wall later.

Record what goes into the walls

Wiring that nobody can locate cannot be safely extended. Photograph and note things as the work happens rather than reconstructing them at handover; the testing section below lists what to keep.

Start with the distribution board

Every future circuit has to find a place in the DB, so specify it before anything else. A board with no spare ways turns each upgrade into a board replacement.

• Spare ways: an enclosure with room for circuits you can foresee, such as another AC, rooftop solar or an EV charger.
• Earth-leakage protection: 30 mA RCCBs grouped sensibly across circuits, or an RCBO per circuit, so one fault does not black out the whole home.
• Surge protection: a Type 2 SPD at the DB as the foundation, with point-of-use protection near sensitive electronics.
• Overload protection: MCBs matched to each circuit's cable, not simply to the appliance.
• Labels: every breaker named by room and use, with a printed circuit schedule inside the DB door.
• A backup split: the circuits your inverter will carry, typically lights, fans, the router and a few sockets, grouped apart from those it will not.

Give heavy appliances dedicated, correctly rated circuits: each AC, each geyser, kitchen appliances such as a built-in oven, OTG or dishwasher, and a washing machine with a heater. Typical practice is 1.5 sq mm copper for lighting on 6A to 10A MCBs, 2.5 sq mm for socket circuits on 16A MCBs and often 4 sq mm for heavy points, but your electrician sizes each circuit for the real load, run length and installation method. Even with no electric car planned, leave provision for one: a 7.4 kW home charger needs a dedicated circuit of about 32A, a spare way and a cable route to the parking spot.

Switchboards ready for smart switches

Many smart switches need a neutral wire at the switchboard to power their own electronics, and older Indian switchboards often lack one. Smart modules also need a deeper back box than a plain switch. Adding either later means pulling a new wire through conduit that may already be full, or cutting into the wall.

So ask for a neutral at every switchboard, including boards that will hold ordinary switches for now, along with deep back boxes and a spare module position in the main board of each room. Plan two-way switching for bedroom lights and fans at the same stage, so they can be controlled from both the door and the bed. These choices determine which of the home automation trends of 2026 your home can adopt without reopening walls.

Cat6 and empty conduits with draw wires

Start by choosing a network corner: a central, ventilated spot where the router, fibre ONT and a small network switch can live, on an inverter-backed circuit, with a conduit to wherever the fibre enters. From there, run Cat6, which carries gigabit Ethernet up to 100 m, to:

• the TV wall, for the smart TV, streaming box or games console
• each study or work desk, for steady video calls
• a ceiling point on each floor or wing for a Wi-Fi access point, so coverage no longer depends on where the router happens to sit

Then lay empty conduits with draw wires for things you may add later:

• TV wall to console: a large, accessible conduit so HDMI and other cables can be replaced as standards change. Our guide to media wall cable management covers the rest of the TV wall.
• Ceiling: a projector and in-ceiling speakers.
• Balcony: lighting and a camera, with weather-protected fittings.
• Gate or main door: a video door phone.
• Terrace to DB: rooftop solar panels and the inverter.

How many points does each room need?

There is no universal number, but a sensible starting point prevents the usual shortfalls. Treat the table below as exactly that for a typical Indian home, then adjust it to your own furniture plan and appliance list. Kitchens deserve an appliance-first plan of their own; see our guide to modular kitchen socket planning.

Flexible zones: where power tracks earn their place

Some walls change far more than others. The backsplash gains an air fryer, the desk a second monitor, the TV console a games console, the bedside a lamp and a watch charger. Fixed sockets make you guess those positions for a decade; a power track turns the wall into a zone.

The Adivaa Power Track is a wall-mounted aluminium alloy rail that holds up to 10 socket modules. They click in anywhere along it and lock with a 90° twist, and with the track switched off you can add, move or remove them later without tools. It comes in nine lengths from 40 to 250 cm, in Black, Grey or Silver, as a surface-mounted or concealed version, and a licensed electrician terminates it once at a single supply point. At the TV console or a study desk, the Power Track with Multimedia puts HDMI, LAN, telephone, USB and audio ports in the same rail as power, in 60, 100 and 150 cm lengths.

Timing matters. A concealed track needs its channel cut into the wall, stone or joinery before finishes, so it belongs in the design stage; a surface track can be fixed to a finished wall later. Our comparison of concealed and surface-mounted power tracks helps you choose.

Stage by stage: what to lock and when

Each construction stage closes off options, so each has decisions that must be final before the next one starts.

Testing and documentation at handover

A well-documented installation is one the next electrician can understand quickly. Before you accept handover, ask your licensed electrician to carry out and record:

1. Insulation resistance tests on every circuit, to catch damaged cable insulation hidden in the walls.
2. Earth tests, covering continuity to each point and the earth pit itself, with the pit checked again before the monsoon.
3. RCCB tests with a proper tester as well as the test button, to confirm each device trips as it should.
4. Polarity and function checks at every socket, switch and track.

Then keep the paperwork together in one folder, paper or digital:

• As-built electrical drawings showing routes, box positions and circuit numbers, including site changes
• Photographs of every wall taken before plastering
• The circuit schedule, matching the labels in the DB
• A note of spare DB ways and every empty conduit, with where each one runs
• Test results, warranty cards and product manuals

Before the walls close: where to start

Everything in this guide is quick to add while walls are open and slow, dusty and disruptive afterwards. A point added to a finished home usually means chasing plaster, patching, repainting the whole wall so the patch disappears, and sometimes lifting tiles or cutting stone, all while you live around the work. Where walls are already finished, surface-mounted options are the honest fallback.

So before the electrician quotes, hand over three things: the furniture layout, a full appliance list and the room table above. Ask for spare DB ways and every empty conduit to be marked on the drawing. When you reach the zones where devices gather, browse the power track range with the lengths you have measured.
