Modular Kitchen Socket Planning: An Appliance-First Points List
Plan kitchen power around what you actually cook with: which appliances need their own circuit, where backsplash sockets sit, how to power an island, and the list your electrician needs.
By Adivaa Power Team
In this guide
- Modular kitchen socket planning starts with appliances
- Which kitchen appliances need a dedicated circuit?
- Plan the counter in zones
- Kitchen socket placement: heights and clearances
- Tall units, appliance garages and hidden points
- How do you get power to a kitchen island?
- The kitchen electrical points list for your electrician
- Where to start
Key takeaways
- Start with an appliance list, then give each item a dedicated circuit, its own hidden point or a backsplash socket.
- Built-in ovens and OTGs, dishwashers, instant geysers and built-in induction hobs need dedicated circuits.
- Backsplash sockets typically sit 150 to 250 mm above the counter and at least 300 mm from the sink and hob.
- A 2,000W kettle, 1,500W air fryer and 750W mixer together draw about 18.5A, more than a 16A circuit is rated for.
- Island power needs a floor conduit laid before the flooring goes down, with its route photographed.
A month after the modular kitchen is handed over, the workarounds have settled in. The air fryer sits next to the hob because that is where the spare socket turned out to be. The mixer grinder shares a three-way adapter with the microwave, and the kettle cord loops over the chopping board every morning. The shutters close beautifully. The sockets simply went where the old ones used to be.
Good modular kitchen socket planning reverses that order: appliances first, loads and circuits second, positions on the wall last. This guide covers loads, dedicated circuits, heights and clearances, tall units and islands, and ends with a sample points list for your electrician.
Short answer: List every appliance before marking a single point. Give a built-in oven or OTG, dishwasher, built-in induction hob and instant geyser dedicated circuits, and give the chimney, RO purifier and fridge their own points. Run sockets for countertop appliances along the backsplash, typically 150 to 250 mm above the counter and at least 300 mm from the sink and hob, on circuits sized for what runs together.
Modular kitchen socket planning starts with appliances
Every kitchen point exists to serve an appliance, so the appliance list is the real brief. Note everything with a plug that you use in an ordinary week, then add what you expect to buy in the next few years: a dishwasher you might add later still needs its point while the walls are open.
Sort the list into three groups, because each is powered differently. Heavy fixed appliances (built-in ovens, OTGs, convection microwaves, dishwashers, instant geysers and built-in induction hobs) get dedicated circuits. Light fixed appliances (chimney, RO purifier, refrigerator) get their own points, hidden but reachable. Countertop appliances move with the task, so they share sockets along the backsplash. The loads below are typical running figures at 230V; check the rating plate on yours, and divide watts by 230 for amps.
| Appliance | Typical load | Power it needs | Where the point goes |
|---|---|---|---|
| OTG, convection microwave or built-in oven | OTG and convection models 1,500 to 2,500W (6.5 to 11A); check an oven's plate | Dedicated circuit | Tall unit, or the cabinet beside it |
| Dishwasher | High while heating water | Dedicated circuit | Neighbouring base cabinet |
| Instant geyser | High | Dedicated circuit | Beside it, clear of the tap |
| Built-in induction hob | Higher than a single cooktop | Dedicated circuit | Base unit below, reachable |
| Chimney | Low: fan motor and lights | Its own point | Inside the cabinet or duct cover above it |
| RO purifier | Low | Its own point | Beside it, out of splash range |
| Refrigerator | 100 to 300W running (0.5 to 1.3A), with a start-up surge several times higher | Its own socket, never a board | Beside or behind it, reachable |
| Mixer grinder | 500 to 1,000W (2.2 to 4.3A) | Backsplash socket | Prep zone |
| Electric kettle | 1,500 to 2,200W (6.5 to 9.6A) | Backsplash socket | Beverage zone |
| Toaster, coffee machine | Heating elements; check the plate | Backsplash socket | Beverage zone |
| Air fryer | 1,200 to 1,800W (5.2 to 7.8A) | Backsplash socket | Cook zone, vent kept clear |
| Solo or grill microwave | 800 to 1,400W (3.5 to 6A) | Backsplash socket or its own point | Counter or tall unit |
| Single induction cooktop | 1,200 to 2,100W (5.2 to 9.1A) | Backsplash socket | Cook zone |
| Phone and tablet chargers | Phone 20 to 45W (0.1 to 0.2A) | USB or standard socket | Charge zone, away from sink and hob |
For the countertop rows, the socket and plug must be rated for the appliance. A 6A socket, the smaller three-pin type still called ‘5A’, tops out at about 1,380W, too little for a kettle, air fryer or induction cooktop. Never force a large plug into a small socket with an adapter.
Which kitchen appliances need a dedicated circuit?
A dedicated circuit is a cable run from its own MCB in the distribution board (DB) to a single appliance point, so nothing else competes for its capacity. Appliances that draw a large current, especially for long periods, need one. An OTG drawing up to 11A takes most of a 16A socket circuit by itself; add a kettle and the wiring carries more than it was sized for. Every appliance in the heavy fixed group qualifies, and so does a washing machine with a heater if it lives in the kitchen or the utility area beside it. A gas hob with mains-powered ignition needs only a small point in the base unit.
Cable size and breaker rating are your electrician's decision, based on the rating plate, the length of the run and how the cable is laid. Typical practice is 2.5 sq mm copper on 16A MCBs for socket circuits, with heavy points often on 4 sq mm cable and a circuit of their own. Ask for kitchen circuits to be protected by a 30 mA RCCB or by RCBOs, which trip on earth leakage and reduce shock risk in a room full of water.
If your present kitchen already has warm plugs or a permanent adapter, read our guide to the warning signs of an overloaded socket before planning anything new.
Plan the counter in zones
A counter is a sequence of tasks, and each stretch has its own power pattern. Mark these zones on the kitchen vendor's elevation drawing before anyone marks a wall:
- Prep: the longest clear run, usually between sink and hob, for the mixer grinder and food processor. It needs the most sockets.
- Cook: beside the hob, beyond the clearance, for the air fryer, rice cooker or single induction cooktop.
- Bake: the OTG or oven on its dedicated point, with space around it.
- Clean: sink, dishwasher, RO purifier and instant geyser, with no countertop sockets.
- Beverage: kettle, toaster and coffee machine, often nearest the dining table.
- Charge: phones and a recipe tablet, at the driest end of the counter.
Countertop appliances rarely stay put. An air fryer arrives after move-in, extra appliances come out for Diwali, and the prep zone shifts when two people cook. That is the argument for a continuous backsplash track instead of a few fixed sockets. On the Adivaa Power Track, an aluminium alloy rail, socket modules click in anywhere and lock with a 90° twist; with the track switched off, you can move, add or remove them without tools. One track takes up to 10 sockets, each module rated 13A at 250V. The track is rated for 32A, but its supply circuit sets the real limit: on a 16A circuit, the whole run is limited to 16A.
Our guide to load capacity and converting watts to amps walks through this arithmetic for any room. For the charge zone, a USB + C-Type Track Socket on the same track adds one USB-A and one USB-C output with 5A fast-charging support, freeing a socket from a charging brick; our guide to what a USB-C wall socket can and cannot charge covers the rest of the home.
Kitchen socket placement: heights and clearances
Typical Indian modular kitchen counters are 850 to 900 mm high, and backsplash sockets usually sit 150 to 250 mm above the finished counter. On an 870 mm counter, that puts the socket line about 1,020 to 1,120 mm above the finished floor, clear of spills.
- Measure from the finished counter. Points are marked at first fix, long before the stone arrives, so get the finished level from the kitchen vendor or a point can end up behind the slab.
- Keep 300 mm from the sink and hob. This rule of thumb, measured horizontally from their edges, keeps sockets out of splashes and steam and stops anyone reaching across a lit burner.
- Avoid the blind corner of an L- or U-shaped counter, where sockets are hard to reach.

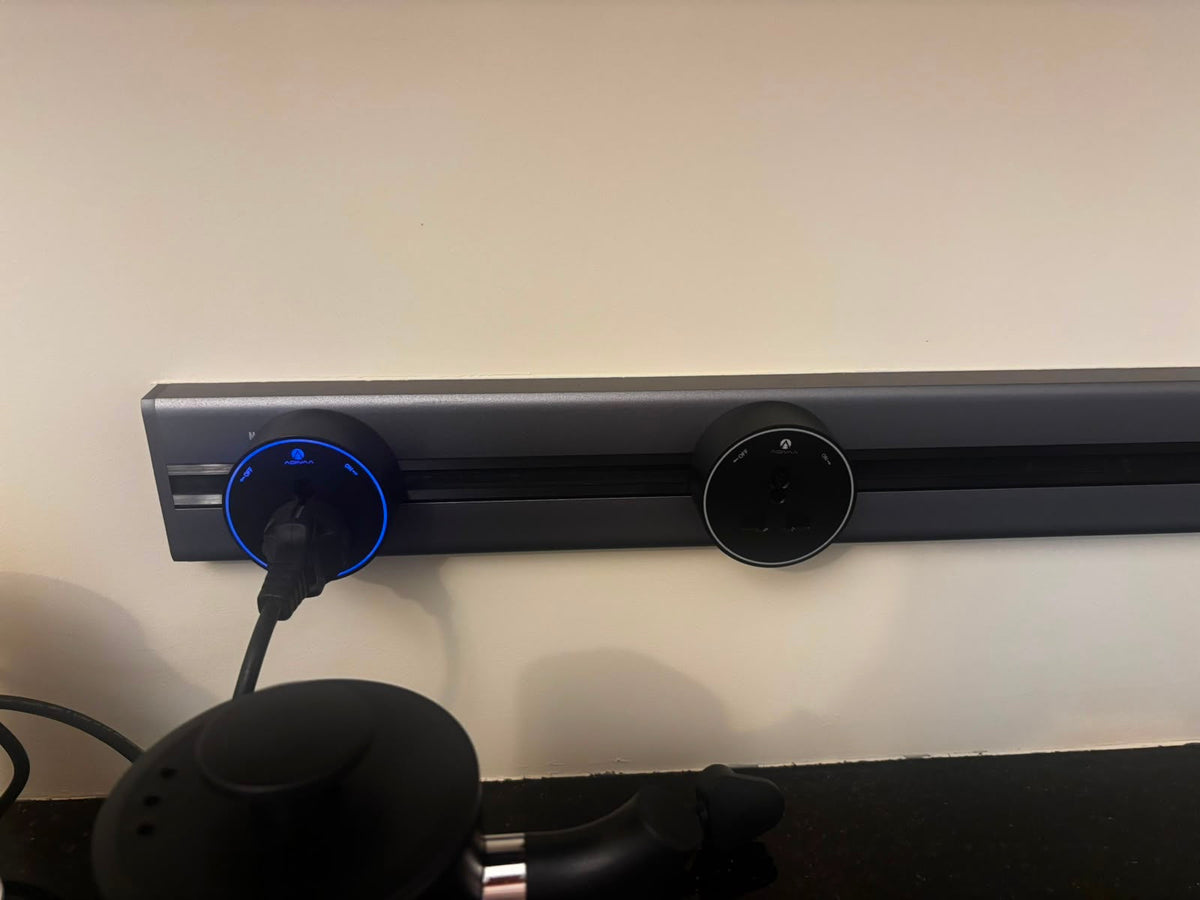

- Match the backsplash stage. A surface-mounted track is screw-fixed onto finished tile or stone; a concealed one needs its channel cut before finishes. Our comparison of concealed and surface-mounted tracks helps you choose.
- Plan under-cabinet lighting now. LED strips usually need a switched feed and a driver inside a wall cabinet, which is awkward to add later.
Steam, splashes and cleaning
Pressure-cooker steam, oil haze from the tadka and water flicked off washed vegetables test every fitting. The Power Track's continuous seal along its channel keeps anything larger than about 1 mm away from live conductors, which suits normal indoor kitchen use, but it is not made for wet areas or direct water, so the sink clearance still applies. Switch the track off before wiping it with a dry or barely damp cloth. An RCCB that trips repeatedly is signalling a fault for an electrician to trace; never bypass it.
Tall units, appliance garages and hidden points
Built-in appliances hide their points, so give the carpenter every position, including the chimney and RO points, before the carcasses are fixed, or a point can end up sealed behind a back panel.
Tall units. An oven and microwave stacked at eye level need points you can reach to switch off or unplug without sliding the appliances out, such as in the cabinet directly above or beside the housing. Follow each installation manual for ventilation gaps, and treat the fridge recess the same way: a reachable socket and the air gap the manual asks for.
Appliance garages. A countertop cabinet with a shutter hides the toaster, coffee machine and mixer, but it only works with power inside. A short track or a pair of sockets along its back wall lets appliances stay plugged in. Pull anything that makes heat or steam forward and leave the shutter open while it runs, because a closed cabinet traps both.
How do you get power to a kitchen island?
Kitchen island power is decided at the civil stage, not during carpentry. A freestanding island has no wall behind it, so its supply must rise through the floor in a conduit laid before the flooring. Afterwards the choice is cutting the floor or living with a cord across it, which in a home mopped every day is both a trip hazard and a wet one.
- Fix the island's position, size and seating side on the drawings before civil work starts.
- Have the electrician lay a conduit with a draw wire from the nearest wall to the island, and photograph the route before the floor goes down.
- Bring the cable up inside the island carcass and place sockets on the working side or end panel, never the seating side where knees and children are.
- Keep the same 300 mm clearance from any hob or sink on the island.
A peninsula is easier, because the cable can travel through the carcass from the wall run. On either, sockets or a short track along the side panel, surface-mounted or routed flush during carpentry, give you power for a hand blender at breakfast or a laptop in the evening.
The kitchen electrical points list for your electrician
The method ends in one sheet that the kitchen vendor, carpenter and electrician all work from. Here is a sample for a mid-sized L-shaped kitchen; copy the format, and let your electrician confirm circuits and ratings.
| Point | Type | Position | Circuit |
|---|---|---|---|
| Backsplash track A, 150 cm (prep and cook) | Track, four sockets | 200 mm above counter, 300 mm from hob | C1, 16A |
| Backsplash track B, 120 cm (beverage and charge) | Track, three sockets and a USB module | 200 mm above counter, 300 mm from sink | C2, 16A |
| Refrigerator | Socket | Beside the fridge recess | C3 |
| Chimney | Socket | Inside the duct cover | C3 |
| RO purifier | Socket | Beside the purifier | C3 |
| OTG or built-in oven | Dedicated point | Cabinet above the housing | C4, sized by electrician |
| Dishwasher | Dedicated point | Neighbouring base cabinet | C5, sized by electrician |
| Instant geyser | Dedicated point | Beside the geyser, clear of the tap | C6, sized by electrician |
| Under-cabinet lights | Switched feed | Inside a wall cabinet, for the driver | Lighting circuit |
Before the backsplash goes on, check the plan against this list:
- Every appliance, including the ones you intend to buy, has a point.
- Each point is dimensioned from the finished counter or floor and a fixed reference, such as the sink centre line.
- Kitchen circuits sit behind a 30 mA RCCB or RCBOs, and every MCB is labelled at the DB.
- Track lengths, supply ends, finish (Black, Grey or Silver) and socket mix are agreed with the kitchen vendor.
- Conduit routes are photographed before plaster and flooring, and every point is tested before handover.
Designers handling a whole home can extend the workflow room by room with our guide to power outlets in interior design.
Where to start
This week, photograph the rating plate of every appliance you own and note the ones you intend to buy. Mark the six zones on the kitchen drawing, measure each clear stretch of counter after the sink and hob clearances, and take both to your electrician before the first conduit is chased. If a backsplash track suits the plan, its nine lengths from 40 to 250 cm make each stretch easy to match; see how the track and its socket modules work.
Frequently asked questions
How many sockets does a modular kitchen need?
There is no fixed number, because it depends on your appliances. Give each fixed appliance its own point: fridge, chimney, RO purifier, built-in oven or OTG, dishwasher and instant geyser. Then count the countertop appliances you use at the same time, such as the kettle, mixer grinder and air fryer, add chargers, and allow two or three spare sockets for appliances you buy later.
Can a kettle and a microwave run on the same kitchen circuit?
They can share a 16A socket circuit, but not comfortably at the same moment. A 2,200W kettle draws about 9.6A and a 1,400W microwave about 6A, so together they approach 16A and go well past the 12.8A that the 80% headroom rule of thumb suggests. Stagger them, or ask your electrician to put the beverage and cooking sides of the counter on separate circuits.
Does a kitchen chimney need a separate socket?
Yes. A chimney should have its own point, placed inside the wall cabinet or duct cover above it, so the plug and cord stay hidden and away from the heat and grease rising off the hob. Its load is small, so your electrician may group it with other light loads on one circuit, but it should never hang off an extension board or an adapter.
How far should a kitchen socket be from the sink and gas stove?
A widely used rule of thumb keeps sockets at least 300 mm horizontally from the edge of the sink and the hob, and typically 150 to 250 mm above the counter. The gap keeps plugs out of splashes and steam, and it means nobody reaches across a flame or a hot pan to plug something in. Apply the same distances on a kitchen island.
Can a refrigerator be plugged into an extension board?
It is better not to. A fridge runs around the clock and draws a start-up surge several times its running current each time the compressor starts, which strains cheap boards and loose contacts. Give it a socket of its own, beside or behind the fridge where you can reach it without dragging the appliance out, and keep other appliances off that socket.
Is a power track safe to use in a kitchen?
For normal indoor kitchen use, yes, when it is installed by a licensed electrician and loaded within its circuit. The Adivaa Power Track has a continuous seal along its channel, so nothing larger than about 1 mm can reach a live conductor, plus surge and overload protection. It is not meant for wet areas or direct water, so keep it at least 300 mm from the sink.
