Overloaded Sockets at Home: Warning Signs, Fixes and a 10-Minute Audit

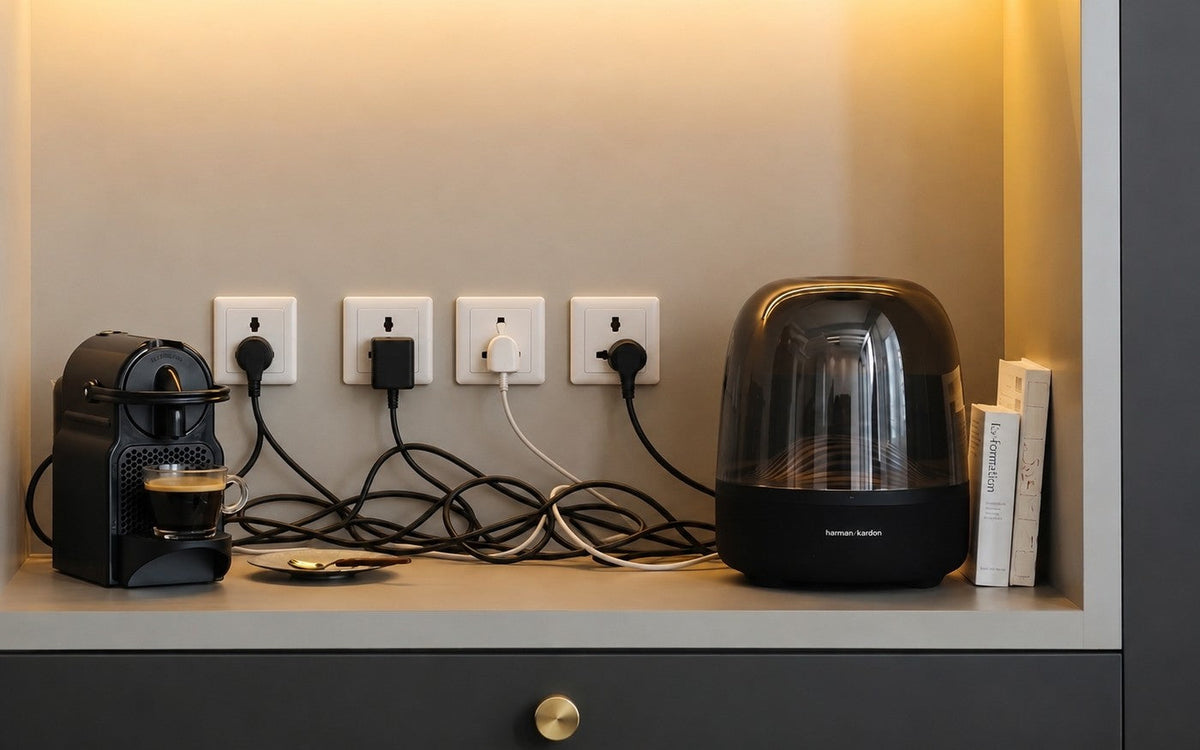

Behind the TV console, a spike guard runs the set-top box, the router, a soundbar and two phone chargers. In the kitchen, one backsplash socket feeds a four-way board shared by the kettle, the mixer grinder and the air fryer. In the bedroom, the iron goes into whichever board has a free slot. Most days nothing happens, which is exactly why an overloaded socket is so easy to live with until the plug top turns brown.

This guide is a safety audit you can do in an evening: what overloading does inside plugs, boards and wiring, what each warning sign means, what your distribution board (DB) can and cannot catch, and how to sort every problem into stop using it now, fix it this week or plan an upgrade.

What happens inside an overloaded socket

Every conductor warms up when current flows through it. In a sound socket with a firm plug, that heat is small and escapes easily. Overloading changes this fast, because resistive heating rises with the square of the current (I²R): double the current and the same conductor produces about four times the heat. The damage concentrates at three weak points:

• Contacts. Spring contacts inside a socket grip the plug pins, and with age or after one hot episode they lose tension. A weaker grip means less contact area and more resistance, so the joint runs hotter, softens the plastic around it and loosens further. That cycle is how a socket ends up scorched around one pin.
• Thin cords. A light-duty cord has little copper inside. Push a heater's worth of current through it and the whole length warms, worse still if it is coiled or trapped under a rug.
• Cheap boards. Unbranded multi-way boards often pair thin internal strips and weak contacts with plenty of outlets, inviting more load than they can carry.

Heat at a loose contact does not raise the current in the circuit, so no breaker sees it. A socket can char while the MCB stays on.

6A and 16A: what the "5A" and "15A" labels really mean

Indian homes use two sizes of three-pin socket. Under IS 1293 the smaller one is rated 6A and the larger one 16A, though they are still widely called "5A" and "15A". At 230V a 6A socket tops out at about 1,380W. A kettle, iron, hair dryer, room heater or induction cooktop, or anything else rated above roughly 1 kW, belongs in a 16A socket with a 16A plug. Swapping an iron's large plug top for a small one so it fits a board defeats the purpose of having two sizes.

Signs of electrical overload and what to do

Overload usually gives notice, but the signs are easy to explain away.

Extension board safety: chains and spike guards

An extension board carries one rating, printed on its label or moulded into the case, and it applies to the whole board. A six-outlet board rated 6A can supply about 1,380W in total, not per outlet. Many boards and spike guards on sale are rated only 6A or 10A overall, and a single kettle can use most or all of that.

Why daisy-chaining makes it worse

Plugging a second board into the first adds outlets, not capacity. Everything on both boards still draws through the first board's cord, its plug and the wall socket, so the chain is only as strong as that first, often flimsy link. Each extra plug-and-socket joint adds contact resistance and one more place for heat to build. Festive season is when chains multiply, and our Diwali lighting safety guide shows how to plan decorations without them.

A spike guard is not overload protection

A spike guard is built to limit brief voltage spikes. Unless it also has a breaker or fuse, it does nothing about excess current, and even a breaker acts only at the board's own rating, which may be higher than that of the socket it is plugged into. If boards have become permanent furniture in a room, our comparison of a power track and an extension board sets out the trade-offs honestly.

MCB vs RCCB vs SPD: what each one protects

Each device in the DB watches for a different fault, and its blind spots matter as much as its name.

The first row is the one that catches people out. An MCB is sized for the cable in the wall, not for what you plug in: a 16A MCB will let 14A flow without tripping, even through a board rated 6A. Protection at the point of use has to come from correct ratings and sensible habits.

A sound earth connection is what lets these devices do their job, so have an electrician test the earth pit, especially before the rains. Our monsoon electrical safety plan covers surge protection and earthing in depth.

How much can one socket take? The load maths

Most overloads can be spotted with one formula and each appliance's rating plate. On India's 230V supply, current (A) ≈ power (W) ÷ 230. Add up everything that runs at the same time on a board or socket and compare the total with the lowest rating in the chain: plug, cord, board, socket, wiring or breaker. Motors and electronics draw slightly more than the formula suggests, and fridges take a short surge at start-up, so a common rule of thumb is to keep continuous loads at or below about 80% of that weakest rating.

Counting outlets tells you almost nothing: ten 25W phone chargers total 250W, about 1.1A, while one 2,000W kettle draws 8.7A. For appliance-by-appliance figures and three complete room scenarios, read our guide to understanding load capacity.

A 10-minute home safety audit

Walk each room with your phone and photograph anything that worries you, so the electrician can see it later.

• Find every extension board, spike guard and multi-plug adapter, and note the ampere rating on each.
• Check what each one powers. Kettles, irons, hair dryers, air fryers, heaters and induction cooktops belong on 16A wall sockets, not boards.
• Unplug any board that feeds another board.
• Look for brown marks, cracked faceplates, melted plug tops and plugs that sag out of their sockets.
• On undamaged points, lightly touch the plug body and faceplate with the back of your fingers after a heavy appliance has run for a while. Warm is a warning; hot means stop.
• Check cords for flattened, kinked, nicked or taped sections, and free any that run under rugs, mattresses or furniture legs.
• Lift boards off floors that get mopped, and away from curtains, cushions and bedding.
• Bin any board with no rating, no brand or no ISI mark.
• At the DB, check for an MCB on each circuit, an RCCB, and labels that say which circuit is which.
• Note any breaker that has tripped more than once recently, and what was running at the time.

Stop using it now

Scorching, melted plastic, a burning smell, sparking, a plug that is hot rather than warm, damaged cord insulation, or a chain of boards feeding a heating appliance. Switch these off and keep them out of use until they are replaced or inspected.

Fix this week

Wobbly sockets, unrated boards, heavy appliances on 6A sockets, cords under rugs, a breaker that trips when two appliances run together, and a DB without an RCCB or circuit labels. Most need a new board, a change of habit or a short electrician's visit.

Plan an upgrade

Rooms where boards have become permanent, a kitchen that trips while breakfast is being made, a desk or TV wall with more devices than sockets, or a heavy new appliance on the way.

What to do if a socket sparks, smells or feels hot

Treat these as faults, not quirks, and act in this order.

1. If it is safe to reach, switch off the supply at the DB: that circuit's MCB, or the main switch if you are unsure which circuit it is.
2. If you see flames or smoke, call 112 (or 101 for the fire service), and never use water on an electrical fire.
3. Leave the circuit off. Switching it back on to see whether it happens again invites a repeat.
4. Have a licensed electrician inspect the socket, the plug and the wiring behind the faceplate before the point is used again.
5. Replace any scorched plug top or board rather than cleaning it up and carrying on.

How to add capacity properly

Homes that live on extension boards are rarely short of electricity. They are short of correctly rated points where people actually use their devices, and the fix depends on the kind of load.

Heavy appliances need dedicated circuits. ACs, storage geysers, built-in ovens and OTGs, dishwashers, washing machines with heaters and EV chargers each belong on their own correctly rated circuit, with the cable and MCB sized by an electrician for the actual load. Heavy points such as ACs and geysers often use 4 sq mm cable, and a 7.4 kW home EV charger needs a dedicated circuit of about 32A.

Clusters of small loads need more, better-placed sockets. A TV wall, a desk or a kitchen backsplash needs several sockets right where the devices sit, fed by a correctly sized socket circuit: new wall sockets, or a track where a zone needs flexibility.

The Adivaa Power Track is built for that second job. A licensed electrician terminates it once at a single supply point; after that, up to 10 socket modules click in anywhere along it, lock with a twist, and can be moved later with the track switched off. It has an aluminium alloy body, fire-resistant internals and surge and overload protection, and each socket module is rated 13A at 250V. Two limits matter. The track is rated for 32A across its length, but the circuit feeding it sets what you can actually draw: on a 16A circuit, it is a 16A run. And it serves everyday devices; it does not replace the dedicated circuits above.

When to call an electrician

• An MCB that trips repeatedly, or an RCCB that trips without an obvious cause
• Before adding a heavy appliance such as an AC, geyser or oven
• After moving into an older home, or if your DB has no RCCB
• After water has reached sockets, boards or the DB

Where to start

Most of what it takes to prevent an electrical fire at home is unglamorous: correct ratings, no chains and prompt repairs. Do the audit this weekend and deal with every stop-now item the same day. Then pick the room where boards have become permanent and fix it with one planned change: a 16A socket where the iron is used, a dedicated circuit for a new appliance, or a properly fed run of sockets behind the desk or TV. If you are considering a track for that wall, our frequently asked questions are a good next read.
