Office Fit-Out Power Planning: A Playbook for Hybrid Workplaces

On Monday the fourth floor is half empty. By Wednesday every bench is taken, laptops are charging from a board on the carpet, and two teams are queueing for the one meeting room where the screen connects first time. When a client team joins next quarter, three benches have to move, and the floor boxes stay exactly where they were.

That is the problem office fit-out power planning has to solve in a hybrid workplace: power and connectivity for a layout that will not sit still. Get it wrong and every change means an electrician, a weekend of disruption and a trail of empty floor-box lids.

This playbook is for architects, designers and facilities managers. It covers per-seat load maths, how distribution methods compare, meeting rooms, collaboration zones, a specification checklist, phasing, and what reconfiguration really involves.

Why hybrid offices keep changing their layout

A traditional office was fitted out once for a fixed headcount and then left alone until the lease ended. Hybrid work breaks that assumption in several ways at once.

• Attendance swings by day, so desks become shared and benches are added or removed as patterns settle.
• Teams grow, shrink and merge between lease renewals, and each change redraws the neighbourhoods on a floor.
• Small meeting rooms and huddle spaces matter more, because more calls include remote colleagues who need a camera and a screen.
• Collaboration areas, focus rooms and phone booths take over space that used to hold rows of desks.

Power is usually the least flexible layer in that picture. Furniture can move in a day; a floor box set into the screed cannot. And because the office now competes with the home desk, people notice when a seat has no power or a screen refuses to connect. Our home office setup guide covers the other half of hybrid work.

How much power does each desk need?

A typical seat today holds a laptop charger (45 to 100W), one or two monitors, a phone charger (20 to 45W), a desk lamp and perhaps a dock. Allow about 150 to 250W per seat: a laptop-only seat sits near the bottom of that range, a seat with two monitors near the top. At 230V, current is roughly watts divided by 230, so even a 250W seat draws only just over 1A.

Load rarely limits a single seat; the way seats are grouped onto circuits does. Give each bench, or each cluster of about eight seats, its own final circuit, and spread those circuits across more than one RCCB or give each its own RCBO. An earth fault, or the small standing leakage that many laptop and monitor power supplies add together, then trips one bench rather than the whole floor. Our plain-English guide to load capacity explains the maths and the weakest-link principle.

Decide early which circuits run from the UPS. Many Indian offices feed desk sockets from a central UPS and pantry or cleaning sockets from raw mains; keep kettles, heaters and printers off UPS circuits, and label every socket so nobody has to guess.

Office fit-out power planning: floor, wall or track?

There is no single right way to bring power to desks; each method trades flexibility against disruption and looks.

A common mix is wall sockets for the perimeter and pantry, floor boxes or an access floor where desks float in open plan, and tracks wherever furniture runs along a wall or credenza. There, the Adivaa Power Track carries up to 10 socket modules per run. They click in anywhere and twist to lock, so sockets can follow seats without tools while the track is switched off. Each run is rated for 32A across its length, but the circuit feeding it sets the real limit, and a licensed electrician terminates it once at a single supply point. It comes in nine lengths from 40 to 250 cm, surface-mounted or concealed, for indoor use. Our essay on architectural power solutions looks at how designers now specify power as part of the interior.

Meeting rooms: power, display and connectivity

A hybrid meeting room works like a small broadcast studio: a display, a video bar or camera, microphones, and people arriving with half-charged laptops. Plan three places together.

• The display wall: power and LAN behind the screen for the display and video bar, plus a conduit from the table to the wall so cables can be changed later.
• The table or credenza: sockets for laptop chargers, an HDMI or USB-C connection for presenting, LAN for anyone on a wired call, and USB charging for phones.
• The route between them: long passive HDMI runs become unreliable at 4K and high refresh rates, so use certified Ultra High Speed cables over short distances, or active or optical cables for longer runs.

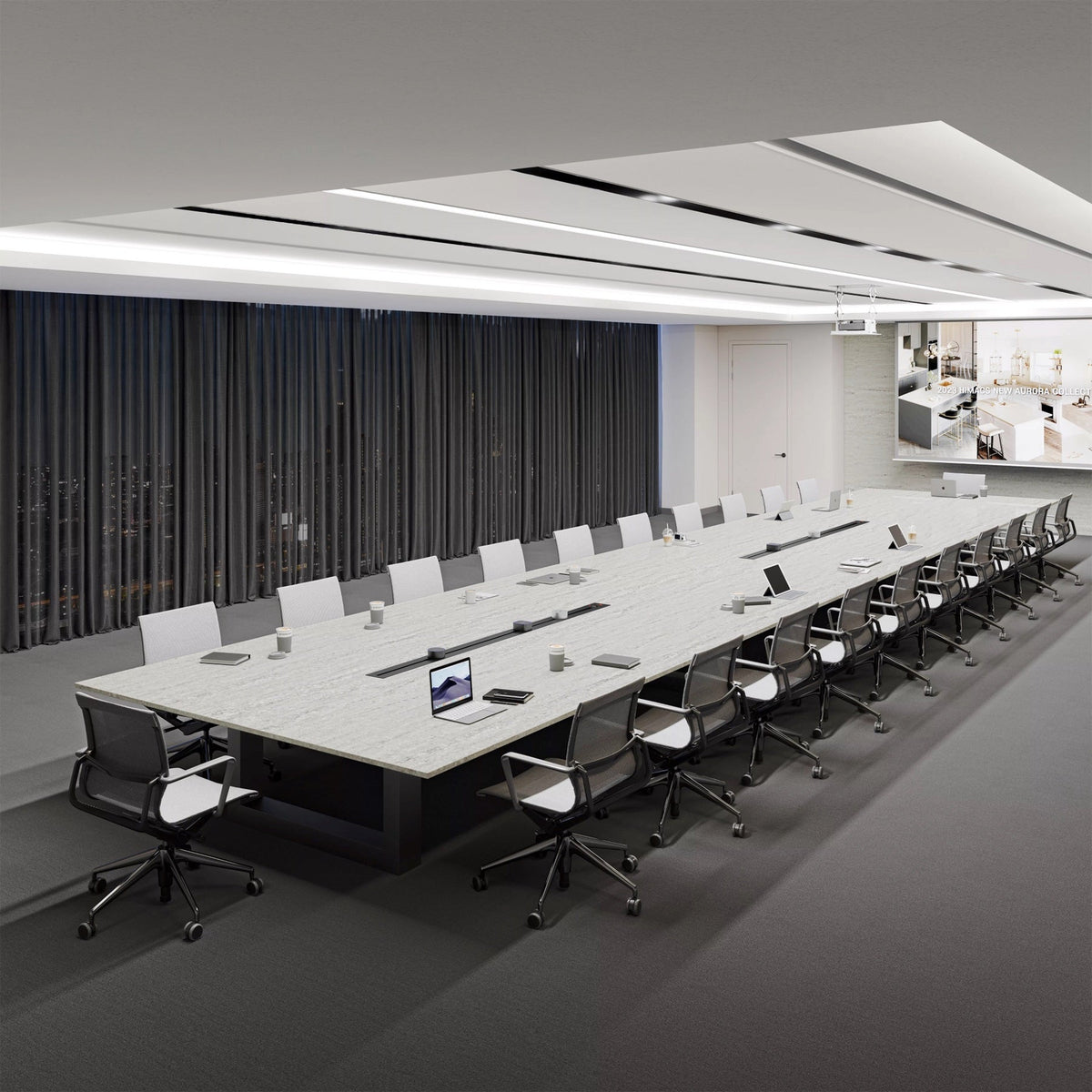

At the table end or along a credenza, the Power Track with Multimedia puts HDMI, LAN, telephone, USB and audio ports in the same aluminium alloy rail as power, with the same surge and overload protection and 32A rating as the standard track, in 60, 100 and 150 cm lengths. Plan the cable routes from the rail to the display and the network rack at the same time. The load is small: four laptops on 45 to 100W chargers draw under 2A together. The principles behind a tidy home media wall, such as short runs, accessible conduits and ventilated equipment, apply here too, and our media wall cable management guide sets them out.

Collaboration zones and phone booths

Collaboration zones fail when people perch on sofas with leads stretched across walkways. Put power where people actually sit: along a wall ledge or high bench, at the ends of sofas and at every table in a café-style area, with USB outlets for phones. Keep cables off circulation routes; a table floating mid-room should be fed from a floor box or access floor, never from a lead across the carpet.

Phone booths and focus pods usually need a power feed for their ventilation fan and lighting, and the person inside expects a socket and USB for a laptop and phone. Plan a feed point where each pod will sit and a spare one where it might move, and check the pod maker's requirements before first fix.

A specification checklist for the fit-out

Put these on the drawings and in the tender so nothing is left to site improvisation.

• Circuits per bench: one final circuit for each bench of about eight seats, confirmed by the electrical consultant's load schedule.
• RCCB grouping: bench circuits spread across several RCCBs, or an RCBO per circuit.
• UPS and raw power: which circuits run from the UPS, with sockets labelled or visibly distinguished.
• Cable management: one vertical drop per bench, trays under desks, power and data routed separately, nothing across walkways.
• Finish: Black, Grey or Silver chosen against the furniture and ceiling, with samples approved before ordering.
• IT access: LAN at benches and meeting tables, with spare capacity in the routes back to the network rack.
• Labelling: every track and socket position marked with its circuit and DB reference.
• Spare capacity: spare ways in each floor DB and room in containment for another bench.

Installation phasing: what happens when

1. Brief. Agree headcount scenarios: seats at typical attendance, seats at peak, and how many rooms need video.
2. Load schedule and circuit design. The electrical consultant turns the per-seat allowance, meeting rooms and pantry into circuits and DB layouts.
3. Coordination. Fix bench positions, track runs, floor boxes, data points and meeting-room AV on one set of drawings with the furniture and IT teams.
4. First fix. Install containment, feeds to each track supply point and any floor boxes, plus data cabling, before ceilings and flooring close.
5. Finishes. Ceilings, flooring and painting go in; surface tracks wait until walls are finished.
6. Second fix. A licensed electrician fixes and terminates tracks and fits floor boxes and DB devices; modules and AV connections follow.
7. Test and hand over. Insulation, earth and RCCB tests recorded, labels checked, as-built drawings and a module layout given to facilities.

Reconfiguration, maintenance and the cost of churn

Churn is the real test of a fit-out. With fixed points, each bench move means a request, an electrician's visit and often floor or wall work outside office hours. With tracks, moving sockets along an existing run is a switched-off, tool-free job for trained facilities staff; only new runs, new supply points and circuit changes need the electrician. To keep reconfiguration safe and predictable:

• Re-check the per-seat maths whenever seats are added to a bench, so no circuit drifts past its allowance.
• Update labels and the as-built drawing after every move.
• Keep spare socket and USB modules in the matching finish.
• Test RCCBs periodically as their maker recommends, and have an electrician inspect any module that is damaged, discoloured or warm.
• File the warranty: Adivaa tracks carry a 12-month warranty from delivery against manufacturing defects, which does not cover damage from incorrect installation, modification or supply faults.

Where to start on your fit-out

Start with headcount scenarios rather than a socket count, turn them into a per-seat allowance and a circuit schedule with your electrical consultant, then choose distribution methods zone by zone: perimeter, open plan, meeting rooms, collaboration areas. Adivaa Power is trusted by organisations including CISCE, Dharma Productions, Krueger International, MWM Spaces, Chalk Studio, NYUCT Design Labs and Relics Wood. If tracks are part of your specification for benches or meeting rooms, talk to our team with your layout and run lengths.
